Overview

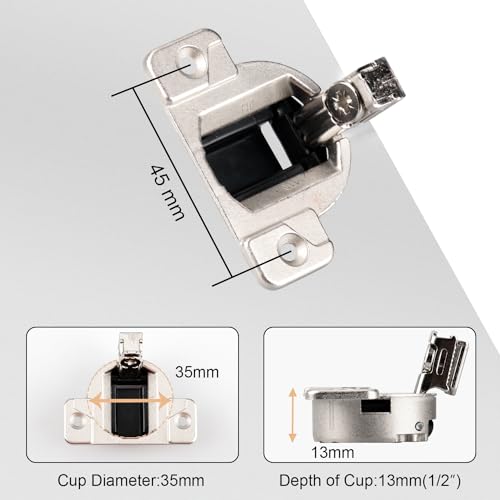

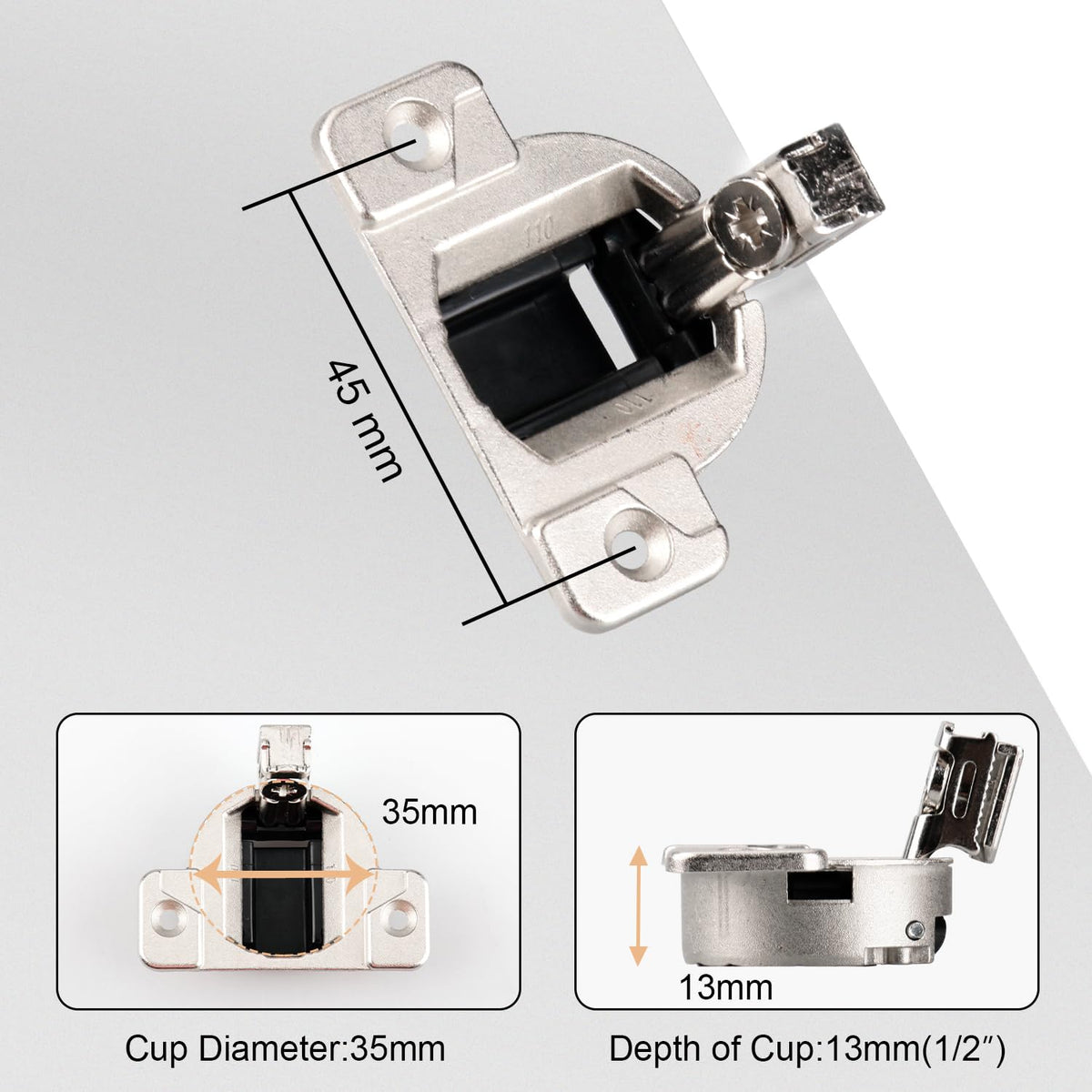

Material Cast Metal Cabinet Door Type Half Overlay, Full Overlay Soft Close cabinet hinges ：No /Self-Closing cabinet hinge :Yes /Plate Connection Type :Screw-On /Opening Angle ：110 Degrees /Cup Diameter :35mm /Screw Hole Spacing :45mm (1-3/4") /Mounting Hardware Included :No /Mounting Hardware Type : Two #6 x 5/8" Flat Head Screws

Features

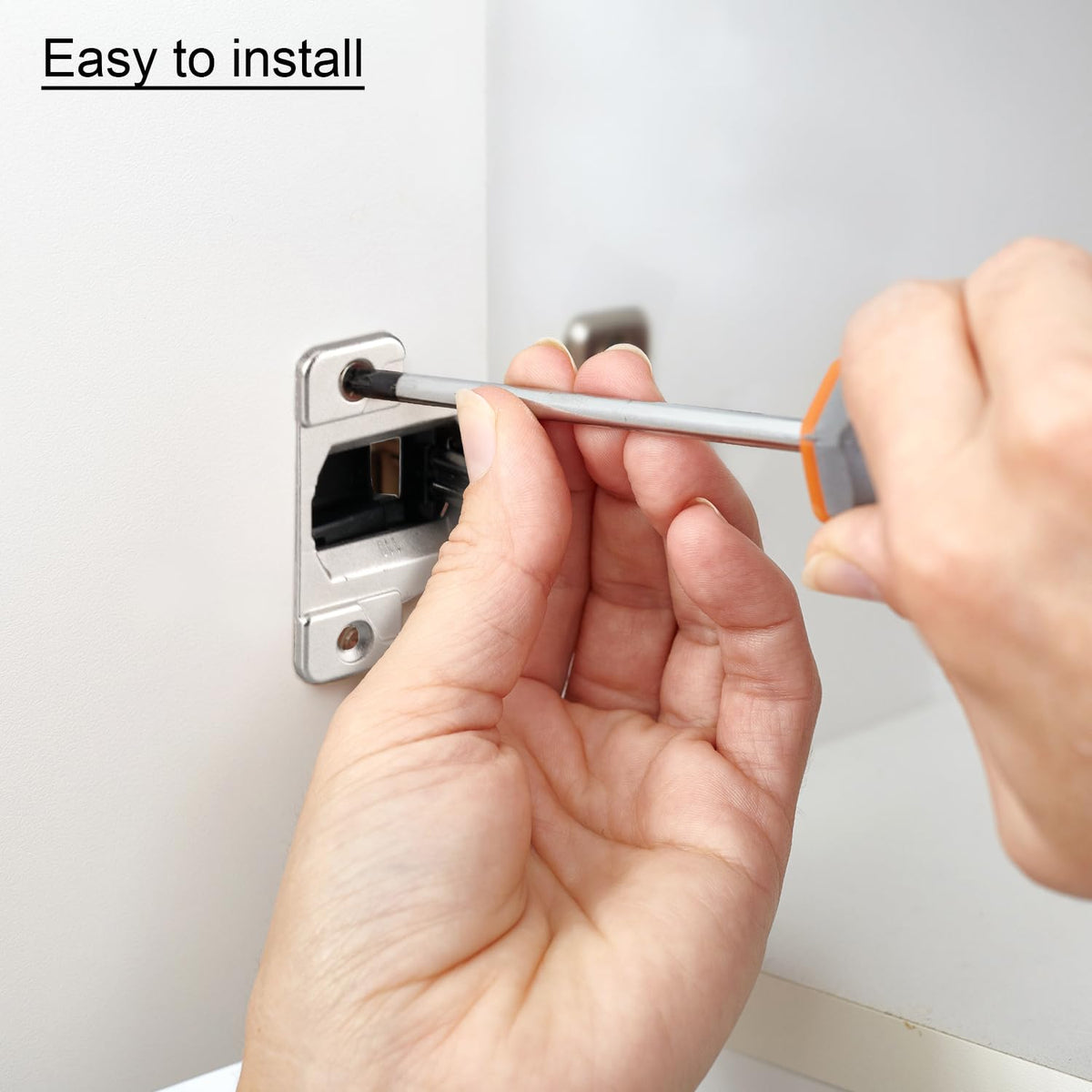

• Easy to install: Replacement parts can be easily installed with just a standard Phillips head screwdriver. Replacement cabinet hinges fit precisely to the original cabinet base, and within minutes, your cabinet will look new.
• Economical and environmentally friendly: The cabinet hinges provided by our store do not include screws and mounting plates. You can continue to use the undamaged mounting plates and screws on the cabinets without any wasted workpieces.
• Installation details：Designed For Doors 16mm To 19mm Thick (Approximately 5/8" to 3/4"). Mounts into a 35mm cup in the back of the cabinet door. Cup depth is 1/2". The bore distance (the distance from the edge of the 35mm cup to the edge of the door) is 1/8" for all applications of this hinge. This hinge is adjustable after installation. Side to side adjustment is plus or minus 1/8" and height adjustment is plus or minus 9/64".

Compatibility

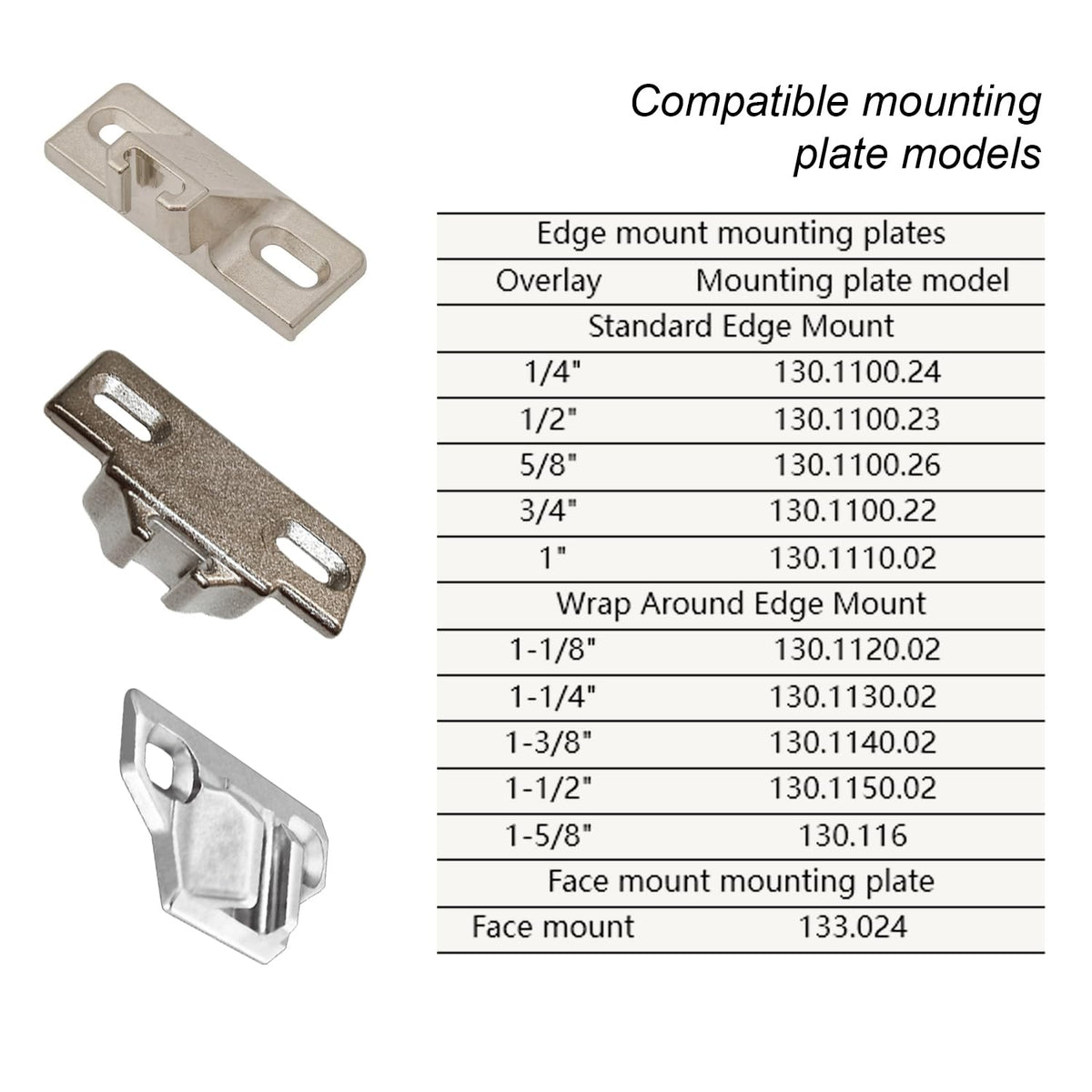

• Compatible Models：cabinet hinges replacement for the original blum cabinet hinges, 110 Degrees screw on self closing compact 33 hinge. The compatible mounting plate models are 130.1100.24, 130.1100.23, 130.1100.23, 130.1100.22, 130.1110.02,130.1120. 02, 130.1130.02, 130.1140.02, 130.1150.02, 130.1160, 133.0240, ect.
• Solid structure: This kitchen cabinet hinge that replaces blum hinges has a sophisticated structure, using high-quality metal as the main material, and the surface is plated with corrosion-resistant nickel. It can withstand frequent use and will not wear out easily. Maintain a long service life.

Specifications

• Part number: 33.3600
• Package dimensions: 2.09 x 4.84 x 6.46 in
• Weight: 0.75 lb

Condition

New: This item is brand new, unused, unopened, and in its original packaging. It has never been worn or used and is in perfect condition, just as received from the manufacturer.
