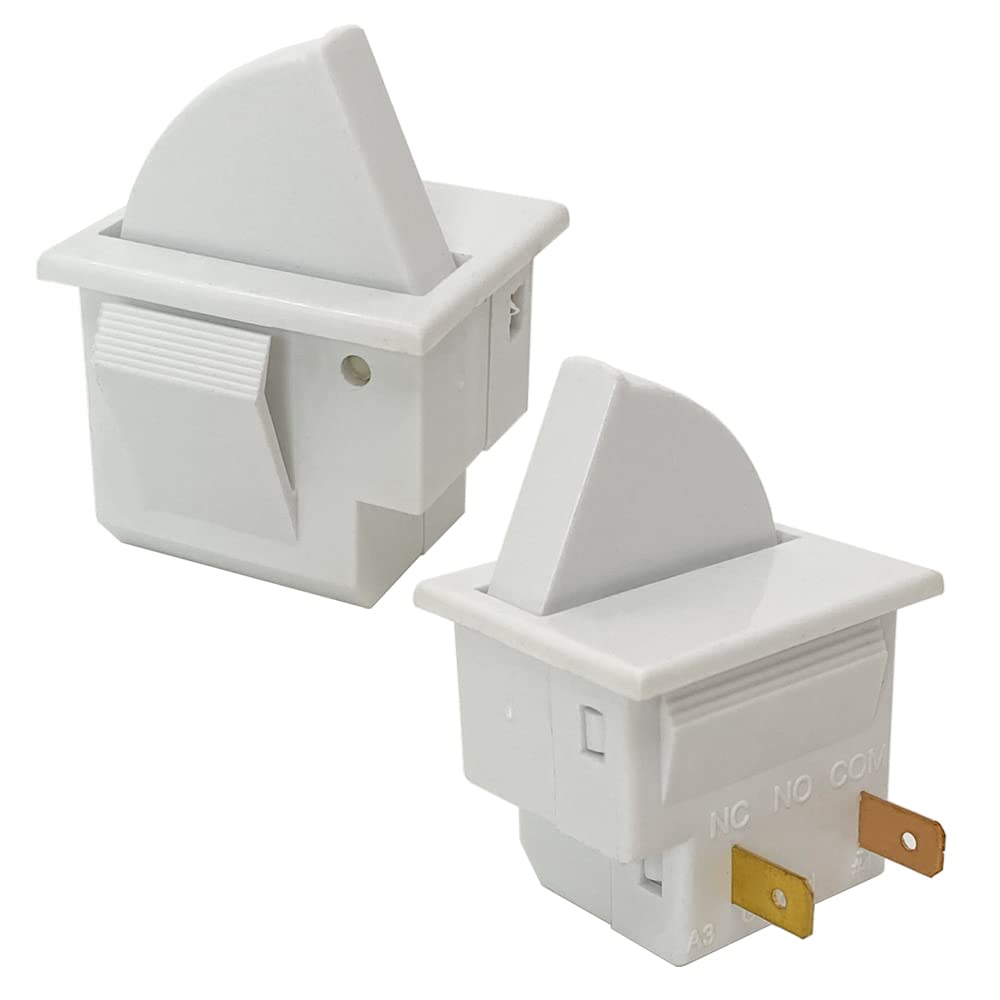

2Pcs Refrigerator Door Light Switch 2 Feet NC

2Pcs Refrigerator Door Light Switch 2 Feet NC

Features: (Note that not all models are compatible)</br> 1. This switch activates the refrigerator when the door is open; It also prevents the from working if the door is closed.</br> 2. Install this refrigerator switch carefully, pay attention to sensive pole's direction; Normally correct direction is that door press on pole, pole will be pressed down; You can press its pole down by your hand to test this switch OK or not as do one simple conformation during your repairing.</br> 3. With single pole options, these momentary door switches are ideal not only for traditional refrigerator and freezer applications but can and have been used in a variety of door applications as well.</br> 4. The most common reasons for replacing the door switch are when the ice maker doesn’t work,or the fridge light doesn't work.</br></br> Specifications:</br> Product Name: Refrigerator Door Light Switch</br> Contacts Type: NC(normally close, most refrigerator control type)</br> Action Type: Momentary</br> Rated Current: 2A-2.5A 250V/6.0A 125V</br> Number of Pins: 2 Pin</br> Material: Plastic, Brass</br> Color: White</br> Panel Size: 30 x 25.5mm/1.18" x 1.0"</br> Height: 26mm/1.02" (Without buttons and pins)</br> Connect Pin Size: 8x4.8x0.5mm/ 0.31"x0.19"x0.02"(LxWxThickness)</br></br> Package Content:</br> 2x Refrigerator Door Switches</br>

About this item:

• Technical Specifications: Generic Refrigerator Door Light Switch 2 Feet with brass contact feet for long life. Quantity: 2pcs. Rated Voltage: 125V/250V AC. Rated Current: 2.5A 250V/ 6.0A 125V. Contact type: NC (most refrigerator control type). As long as the appearance is the same size, basically can be universal
• Precise Dimensions: Panel size: 30 x 25.5mm/1.18" x 1.0"(LxW), Height: 26mm/1.02" (Without buttons and pins); Number of pins: 2 Pin; Connect pin size: 0.31"x0.19"x0.02"(LxWxThickness). Enclosure structure to reduce cold air release and durable. NOTE: Available in white and grey, shipped randomly. Since it is installed internally, color can be ignored
• Wide Compatibility: This light switch is single-pole and snap-in installation; Universal compatible design, replacement for most Whirlpool, GE, Kenmore, Maytag, KitchenAid, Admiral, Amana, Crosley, Jenn-Air, Magic Chef refrigerators' door light switch. (Note: Not all models are universal.)
• Versatile Application: These momentary door switches work for traditional refrigerator and freezer applications and can be used in a variety of door applications as well. NC: Normally Closed, when refrigerator's door open it is close and light will be on
• Installation Instructions: Please be careful when installing this refrigerator switch and pay attention to the direction of the sensor rod; Usually the correct direction is that the door is pressed on the pole, and the pole will be pressed down; You can press its pole down by your hand to test this switch OK or not as do one simple confirmation during your repairing
• Common Replacement Solution: The most common reasons for replacing the door switch are when the ice maker doesn't work, or the fridge light doesn't work, making this an essential repair component for refrigerator maintenance

Condition: New: This item is brand new, unused, unopened, and in its original packaging. It has never been worn or used and is in perfect condition, just as received from the manufacturer.
